The HeliFix PatchPin is based on the HeliFix DryFix technology which has been used for well over 20 years. It is further based on a spiral Stainless Steel twisted element being driven into a smaller hole in a substrate to obtain anchorage. For the purpose of a Wall Tie Pullout values are extremely important. Why the PatchPin works so well for concrete patching pins is that it is Stainless Steel and the twist provides maximum grip to the new patching material, the pin can be bent so Stainless Steel wire can be attached but Pullout not so much. If you look at the diagram you will see that when the PatchPin is installed at “alternate” angles they form an impediment which holds the patch in place as the pins are fixed by the substrate and the patch and cannot move. The only need for Pullout is to hold the PatchPin in for installation and attachment of the wire, after that no pullout is needed, only the geometry to hold it, and the concrete patch, in place. This is the misconception that most engineers have, that the performance of the PatchPin is based on Pullout, which of course, being in concrete always exceeds 400 pounds anyway.
Facade
Coping Stone Installation The Easy Way
RureGold Rope Access Stack Application in Poland
As we get ready to work in yet another Elevator Shaft project I just wanted to show you how easy a Cement Based Structural Stucco us to apply, even in the most difficult conditions. For further information link to – https://www.conspec-rep.com/contact-us/ –

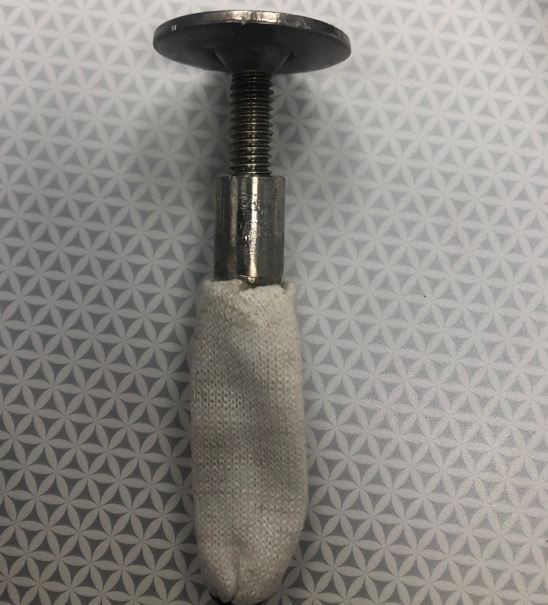

Cintec Cement Based Socked Anchors for Overhead Applications
Cintec Cement Based Socked Anchors can be any length, any steel size, including tubular, round or square, installed at any angle, including overhead and provide a FIREPROOF anchor, especially important in the case of fire in Cavity Walls. Penetration of Steel beams or columns for attachment of any material, including stone and terracotta of any size or weight, only dependent on the substrates ability to support it.
CINTEC PROVIDES CALCULATIONS TO THE EOR, STRUCTURAL ENGINEER.
CastCotta Glaze Selection
Installation of Socked Cement Based Anchors – Nothing Easier
Socked based cement anchors, whether HeliFix or Cintec, are easier to install than resin anchors with almost no waste compared to resin anchors and are fireproof. Installation shown is using plastics inserts for a battery operated bulk cement gun but can be used with just a regular battery or even air operated gun using no sleeves and just filling the tube itself. For high volume projects or long anchors, a pressure pot can be used to facilitate the larger volumes and for the greatest efficiency a peristaltic, continuous feed pump is ideal.

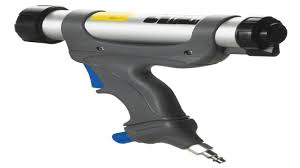

PORTABLE CEMENT BULK GUN

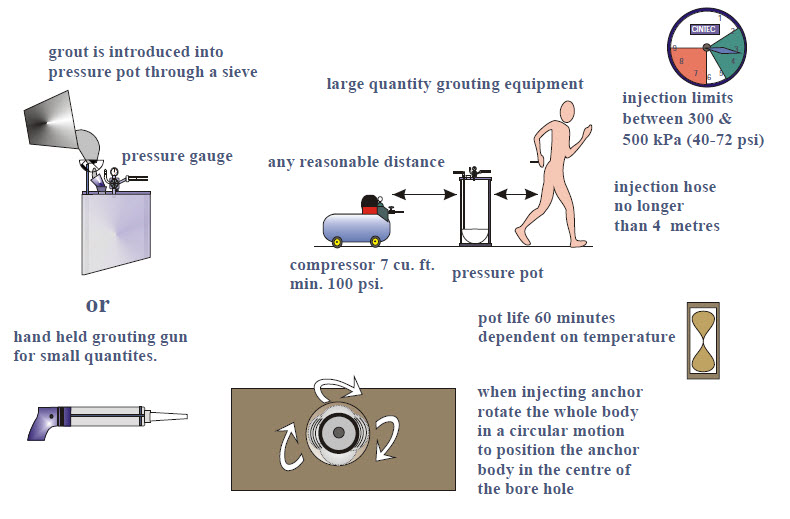

PRESSURE POT

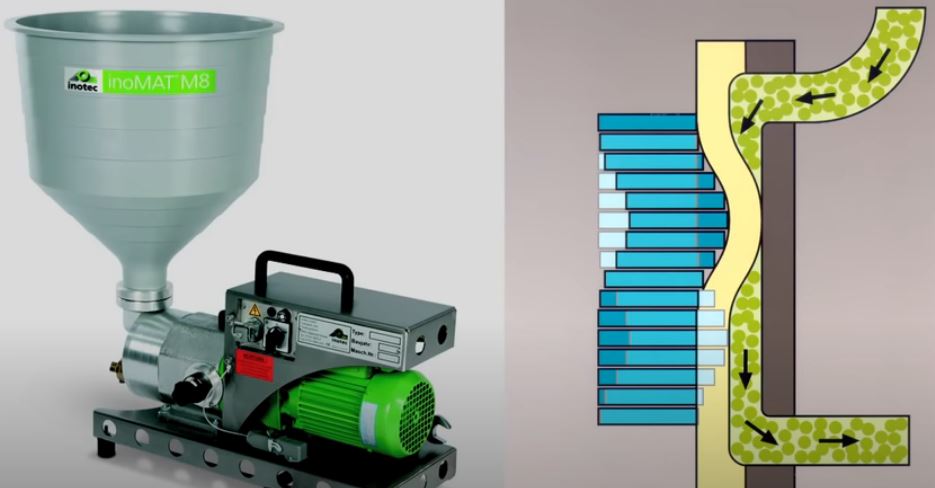

PERISTALTIC PUMP
Socked Cement Based Anchors vs Resin Anchors
Considering all the concerns regarding cavity walls and the need for Controlled Inspection bases solely on Resin Based Anchors consider the ease of installation and Fireproof property of a cement based anchor. Cintec anchors can be any size and custom made for things like Window Installation in Rubble Walls or Attachment of face wall to steel beams or columns.

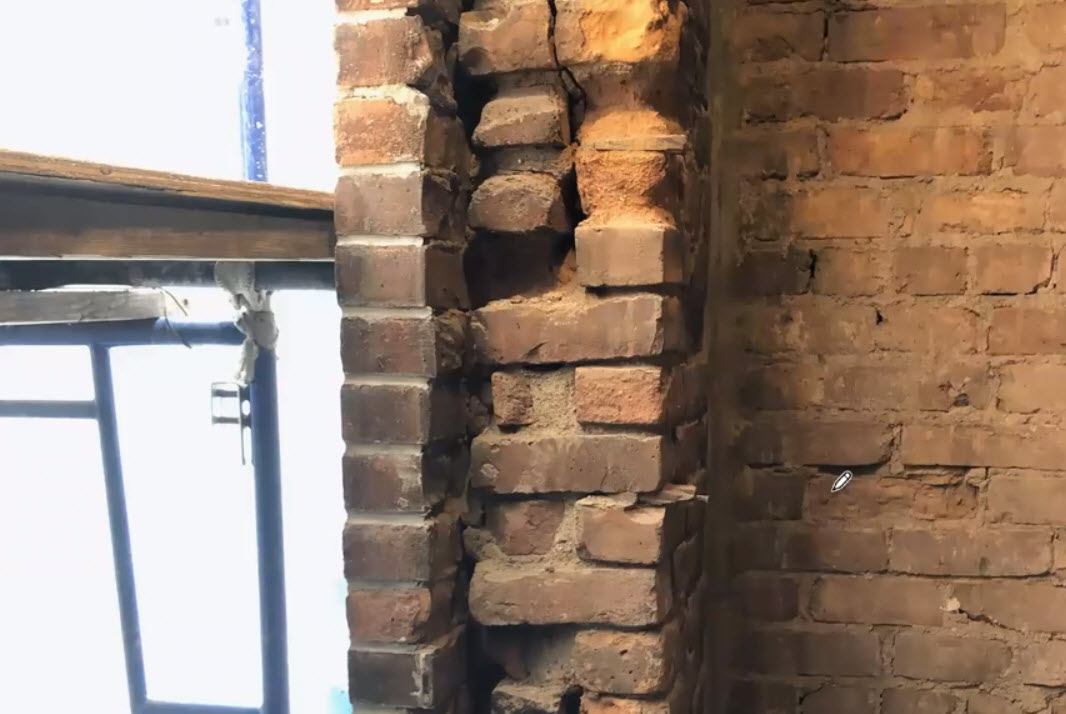

Window Surround Fixing in Rubble Wall – Speedtile or CMU
When fixing a window in a rubble wall which has inconsistent infill many time mechanical and even resin anchors will nor perform well or consistently. It is in these conditions where a cement based socked anchor provides the ideal solution to cover any voids or cavities. Even in Speedtile or CMU walls this system provides maximum anchorage in a fire rated anchor and is easily installed.
CastCotta – Terracotta Replacement – New Construction or Both
First we had stone, then we had Terracotta with over 100 plants in the US alone, now there are only three, two in the US and one in the UK suppling primarily replacement units.
Consider the next transition is CastCotta, a cast unit, that has the decorative capabilities of Terracotta but is as easy to use as a CMU, with all the textures, shapes and glazes we have come to know, with similar ease of installation. CastCotta is identical in Form and Function to Terracotta, is 40% lighter than Terracotta and 80% lighter than precast. Architects, please consider the possibilities not only for replacement but primarily New Construction accent pieces. Other items including Brownstone, Limestone Granite and others are possible with CastCotta. CastCotta can provide this transition.
Contractors, with a 6 week delivery get your project back on schedule and consider CastCotta for your current or future projects.
